Main Features and Specifications
- Color Touch 5″ LCD
- Two compressors + limiter
- Echo, delay, roger beep
- Noise reduction
- SSB, CB, wideband support
- Phase rotator
- Built-in recorder
- 48 V phantom supply
- Ham radio audio processor
- Studio-quality SSB transmission
- Compatible with Icom IC-7300, IC-7000, IC-7610, IC-9700
- Compatible with Yaesu FTDX10, FT-991A, FT-710, FT-DX101D
- Works with Kenwood TS-590,TS-2000, TS-990
- Dynamic and condenser microphones support
- Supports XLR and electret microphones
- Audio effects: limiter, gate, compressor
- Touchscreen ham radio equalizer
- USB-powered EQ for HF transceivers
- Speech enhancement for DX and contesting
- Real-time audio monitoring and recording
📋 Technical Specifications
- ADC/DAC resolution: 24 Bits
- Audio bandwidth: 5 kHz (HF Firmware), 8 kHz (CB Firmware)
- Mains hum suppression: >30 dB (50 Hz & 60 Hz)
- Input: switchable, with bias voltage for the microphone
- Microphone amplifier: two independent preamps – one balanced, one unbalanced; adjustable gain 0–40 dB
- +48 V phantom power: integrated for condenser microphones (range +35 to +48 V; does not affect mic operation)
- Microphone types supported: Electret, Dynamic, Condenser (optional)
- Squelch threshold: adjustable, with option to disable
- Compressor: ratio adjustable to 10:1; threshold 0–40 dB
- Attack: 1 ms; Hold: 5 ms; Release: 50 ms
- Limiter: software-controlled
- Max output level: 200 mV
- MON output power: up to 2×30 mW (32 Ω load)
- 10-band graphic equalizer:
– HF Firmware: 90 / 150 / 220 / 350 / 500 / 800 / 1300 / 2000 / 2900 / 4500 Hz
– CB Firmware: 100 / 150 / 250 / 400 / 650 / 1000 / 1700 / 2700 / 4400 / 7800 Hz - Equalizer range: ±12 dB
- Echo effects: switchable; supports delay and echo mode; adjustable level 0–24 dB, duration 20–140 ms
- Roger beep: 600 Hz sine wave, 50 ms
- Bypass mode: available
- PTT function: supported
- UP/DOWN support: accepted (not for all transceivers)
- Signal level indication: in 3 dB steps
- Control: touchscreen and rotary encoder with press function
- Supply voltage: 4.5–5.5 V
- Max current: 200 mA
- Dimensions: 127 × 85 × 80 mm (excluding cables and connectors)
- Weight: 0.63 kg (1.4 lb)
- UI library: uGUI-based interface
“10-band EQ Pro“ – this is an updated version “10-band EQ”. Details you can read here – LINK
So only the differences will be described below.
A completely different boot-loader is installed on the “10-band EQ Pro”, so updating the standard “10-band EQ” is not possible!
The device has:
- 10 Band Equalizer
- Compressor
- Limiter
- Echo – Delay
- Roger
- Noise Reduction
- SSB or CB soft
- Completely independent parameter sets for 4 various microphones type
Now calibration is carried out not at two points, but at 5 points. At the end of the calibration, the device does a check and indicates how much offset has been made.
More natural and smoother level and compression meters
The enabled blocks in the signal chain are highlighted in color in the block diagram (4)
Completely independent parameter sets for 4 various microphones type.
The following parameters can be configured independently:
- Gain
- Gate
- Comp
- Drive
- Monitor
- Echo
- Delay/Roger
- Norm-DX-Bypass
Echo delay time increased to 150 ms
Very impotent, in this version Noise Gate disable when the indicator is at the bottom (in the normal version it’s conversely)
You can immediately see which block is enabled

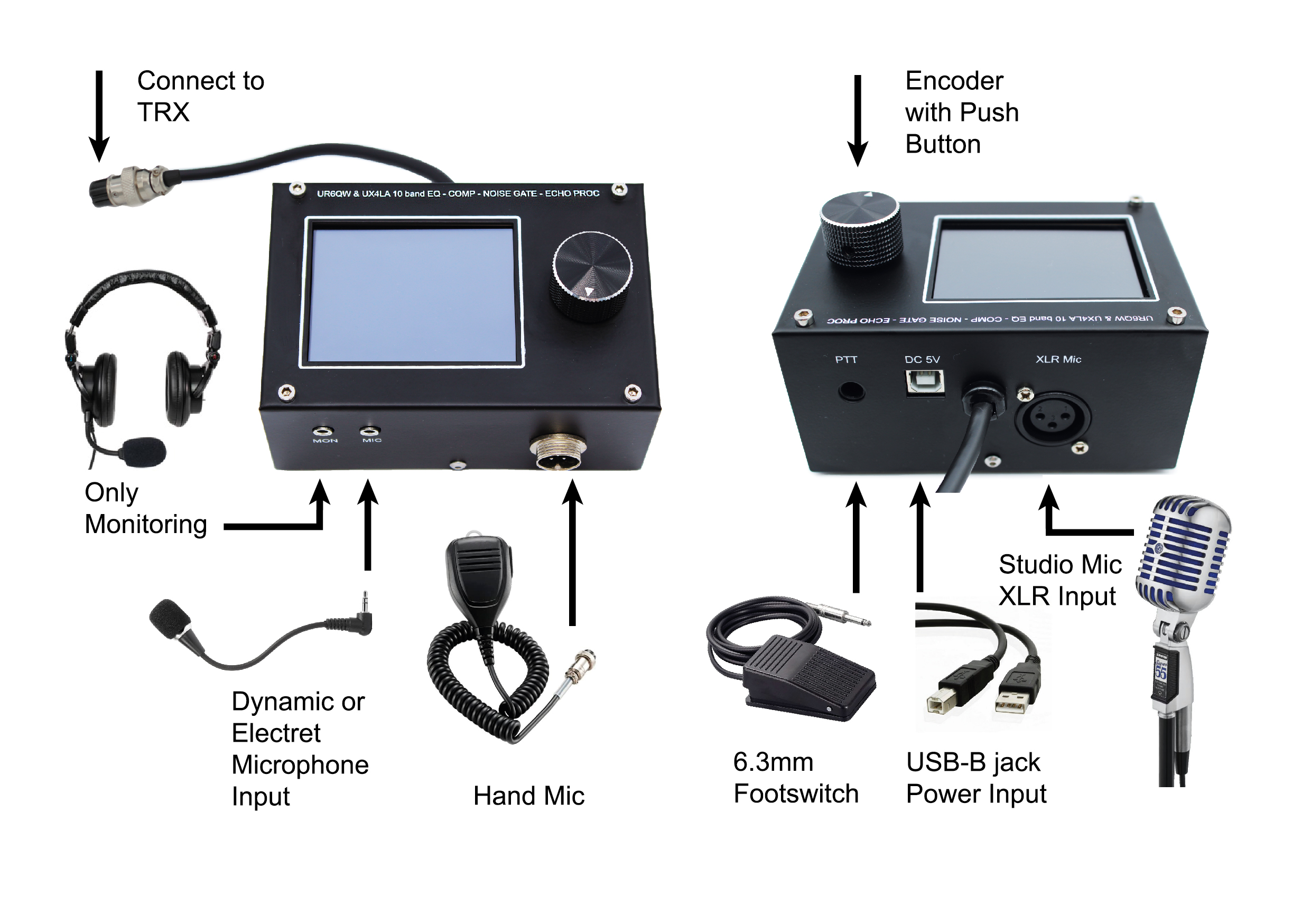

The picture shows the connectors and what can be connected to them
Full audio demonstration
