8-band EQ (v.6)
8-band EQ have:
- 8-band sound Equalizer
- Compressor
- Low noise Mic preamp
- Echo effect processor
- Noise Gate

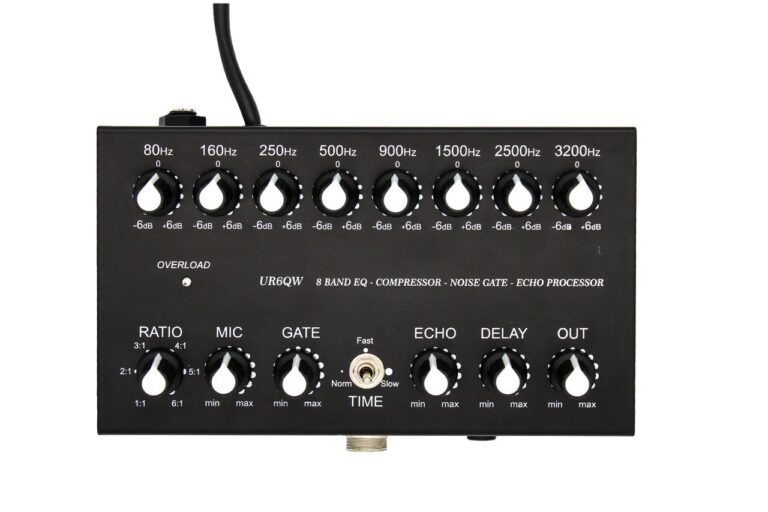

The device have metal case, 8 knobs on top, 5 knobs on bottom and one switch in the middle.
Using an 8-band equalizer, you can adjust the signal with an ideal frequency response.

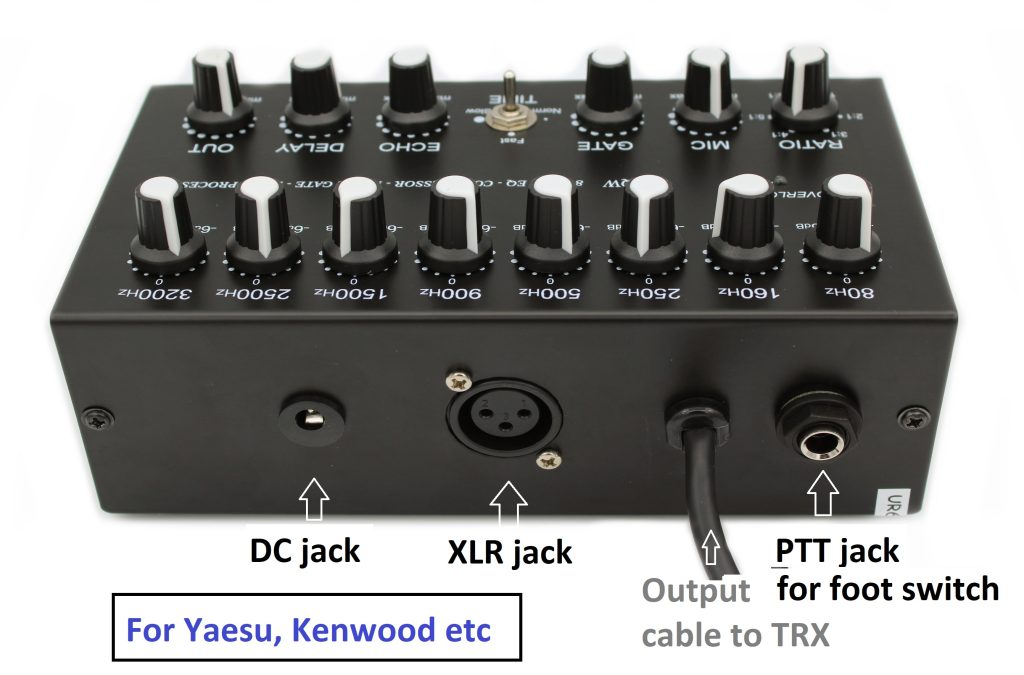

There are three connectors on the rear panel.
5.5×2.1 mm is a DC-jack for connecting external power (8-16V DC)
XLR jack for connecting a studio dynamic microphone
6.3mm jack for connecting foot switch
And this is what the back of the device for Icom transceivers looks like. For this TRX do not need external PS.
Technical data:
- Microphone low noise amplifier with input and output level pots
- Echo processor with regulation of delay
- Slanted front panel for more comfortable operation with it
- Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz
- Strong steel case – reliable protection against external noises
- Good working with HIGH OUTPUT POWER up to 2kWt
- Working UP/DOWN control of the radio by Mic’s knobs
- Has add mic input MINI-JACK for easy use of computer typeface, HEIL Headsets etc
- Has add mic input XLR jack for Dynamic Studio microphones
- Overload level led
- Noise Gate function with shutdown
- Compressor ratio pot
- Dimensions 180mmx100mmx75mm (with knobs)
- Weight – 0.68 kg
- Length of a power cord with 8 pin connector is 50 cm
- Knobs color can be change
- Knobs color can be other
Audio demonstration
