8-band EQ (v.4)
8-band EQ (v.4) have:
- 8-band sound Equalizer
- Compressor
- Low noise Mic preamp
- Echo effect processor

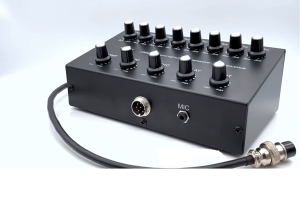

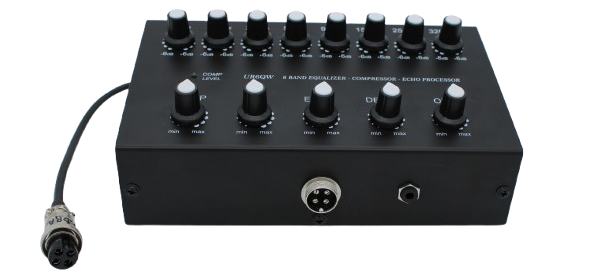

The device have metal case, 8 knobs on top, 5 knobs on bottom and one switch in the middle.
The device will have different connectors depending on the transceiver model.

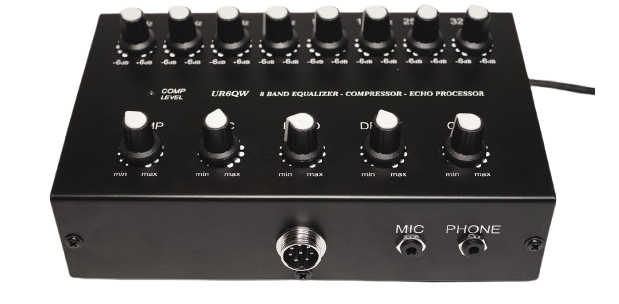

Only ICOMs devices have a Phone and PTT jack.
Technical data:
- Microphone low noise amplifier with input and output level pots
- Echo processor with regulation of delay
- Slanted front panel for more comfortable operation with it
- Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz
- Strong steel case – reliable protection against external noises
- Good working with HIGH OUTPUT POWER up to 2kWt
- Working UP/DOWN control of the radio by Mic’s knobs
- Has add mic input MINI-JACK for easy use of computer typeface, HEIL Headsets etc
- Overload level led
- Compressor pot
- Dimensions 180mmx100mmx75mm (with knobs)
- Weight – 0.65 kg
- Length of a power cord with RJ45 connector is 30 cm
- Knobs color can be change
Audio demonstration

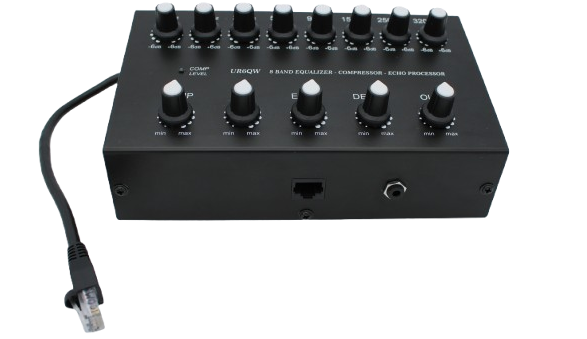

8 – band EQ – for Yaesu RJ-45, Icom RJ-45, Xiegu G90 / 6100 / 6200
and other TRX with RJ45 connectors
