8-band EQ for Yaesu, Kenwood etc (v.4)

Name: UR6QW 8-Band Audio Equalizer V4 | SSB HiFi
SKU: Audio-Equalizer A08-4P (Y-K)
Price: 145.00 EUR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: 155,00 €.Current price is: 145,00 €.

UR6QW 8-Band Audio Equalizer V4

The UR6QW 8-Band Audio Equalizer V4 is a compact microphone audio processor combining an 8-band graphic equalizer, low-noise microphone preamplifier, adjustable compressor, echo effect unit, and built-in noise gate for exceptional SSB audio quality.

Key Features:

Super Hi-Fi Clear Audio: Delivers crisp, punchy transmit audio tailored for DX or ragchewing.
Universal Microphone Support: Works with Dynamic, Electret, and OEM hand microphones via 3.5mm and 8-pin input jacks.
Low-Noise Mic Preamp: Specially engineered circuit to keep background noise at a minimum.
Integrated Effects: Adjustable Compressor, Echo Processor, and Noise Gate on board.
Power Supply: standard DC jack (5.5 x 2.1 mm) on rear panel (9–16V DC).

Note: When placing your order, please specify your transceiver model during checkout so we can prepare the correct pinout configuration for your rig.

2 in stock

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

SKU: Audio-Equalizer A08-4P (Y-K) Category: Equalizers

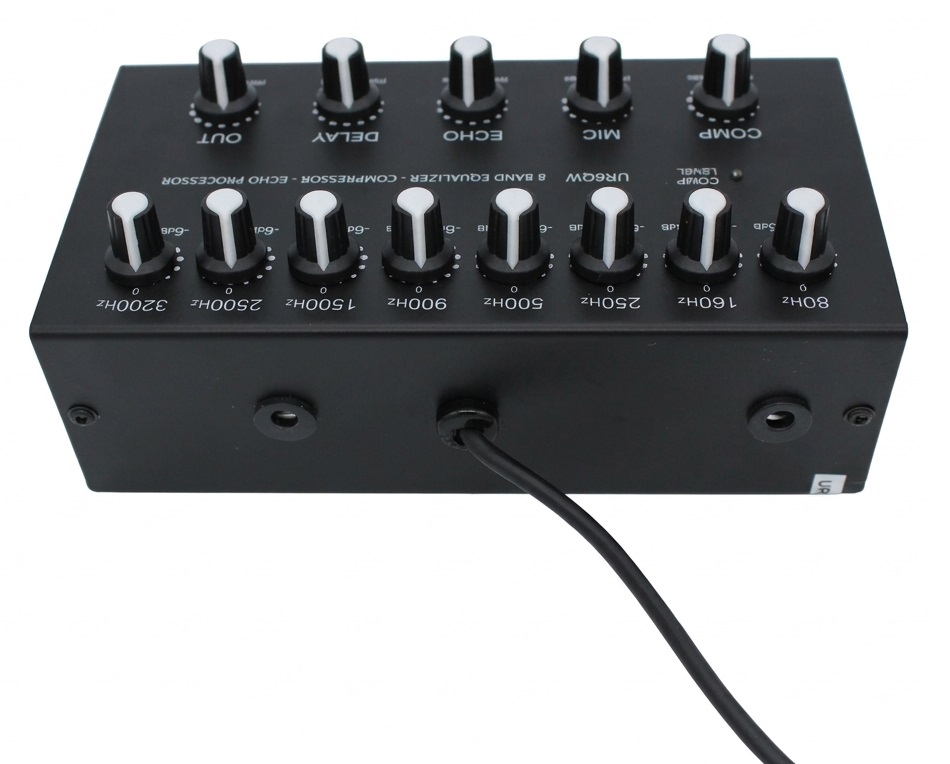

Description

Microphone low noise amplifier with input and output level pots
Echo processor with regulation of delay
Slanted front panel for more comfortable operation with it
Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz
Strong steel case – reliable protection against external noises
Good working with HIGH OUTPUT POWER up to 2kWt
Working UP/DOWN control of the radio by Mic’s knobs
Has add mic input MINI-JACK for easy use of computer typeface, HEIL Headsets etc
Overload level led
Compressor pot
Dimensions 180mmx100mmx75mm (with knobs)
Weight – 0.65 kg
Length of a power cord with 8 pin connector is 30 cm
Knobs color can be change

Please specify your transceiver model when ordering. This device can be connected to one of the following transceiver types:

8pin Yaesu
8pin Kenwood

If you need for Yaesu RJ-45 click – LINK

If you need for Icom 8 pin click – LINK

If you have a different transceiver, please email us.

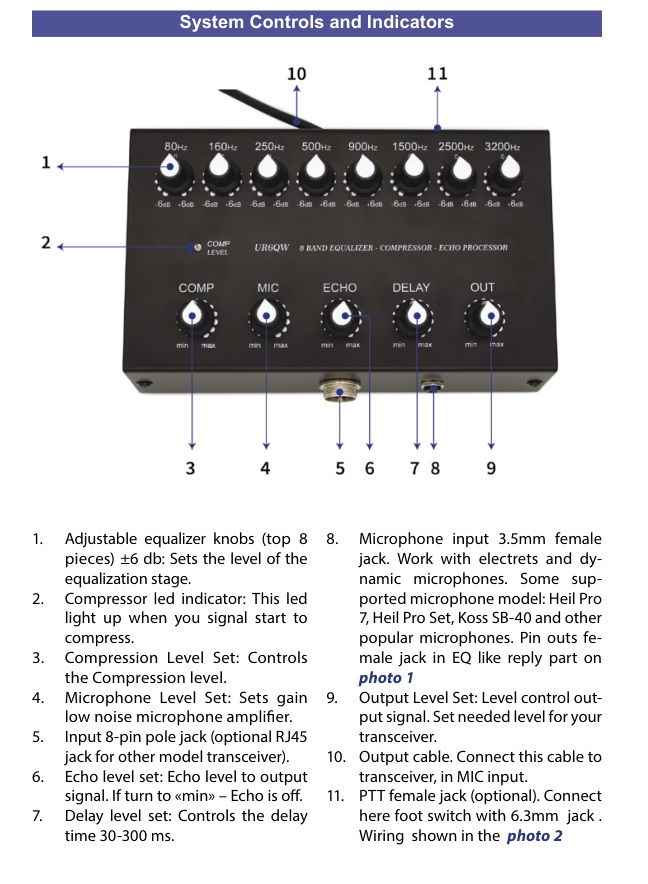

Quick User Guide

Additional information

Weight	0,9 kg
Dimensions	24 × 17 × 10 cm
8-band EQ	Yaesu, Icom, Kenwood

1 review for 8-band EQ for Yaesu, Kenwood etc (v.4)

Rated 5 out of 5

Nigel M0CPU – 24 October 2025

Ive been using the V4 for a few months now and can’t fault it. I get complimentary audio reports and it was easy to setup for my voice characteristics. Box is well made and the internals look nicely soldered. Would be nice to have seen some more mounting options like keyhole slots and/or a U bracket. The fly lead to the radio could definitely be a bit longer. Maybe in the future it would be good to see it in a Slimmer box with all controls facing front in a 1U style arrangement to facilitate easier integration into a smaller shack space. Overall 10/10
